防水性能大幅提升

增加了前部 P 型三元乙丙橡胶密封圈，使防水性能提高了 50%，并显著降低了漏水率，达到了日本 1 级防水设备的标准。

结构大大加强

第一代木板的接缝呈 90° 角，很容易因应力集中而损坏。我们将木板接合面的形状改为折角，从而分散了应力，大大提高了结构强度。

独立式泛水板

新型不锈钢锁定夹设计

板上新增加了一个不锈钢锁定夹，用于锁定每块连接板。第一代产品是通过板上的槽沟直接扣在一起的，由于塑料材料强度低，锁定强度不够，在极端情况下，这些扣可能会滑脱，从而导致故障风险。

新的不锈钢锁扣设计使连接更加稳定，并将整个系统的整体刚性提高了一倍。

加强接触界面

在接触界面设计了带密封件的加固支架，以防止损坏并延长使用寿命。

减少存储空间

木板可以两块或三块连接起来侧放存放，以减少存放空间。组装后的形式可减少运输和应急部署时间。

Waterproof Greatly Improved

The addition of the front P-shape EPDM seal increases the waterproof performance by 50% and significantly reduces the water leakage which reaches the standard of Japan’s Class 1 waterproof equipment.

Structure Significantly Strengthened

The 1st generation of board joints were at 90° angles and were easily damaged due to stress concentration. We have changed the shape of the joint surface of the board to a folded angle, thus dispersing the stress and significantly improving the structural strength.

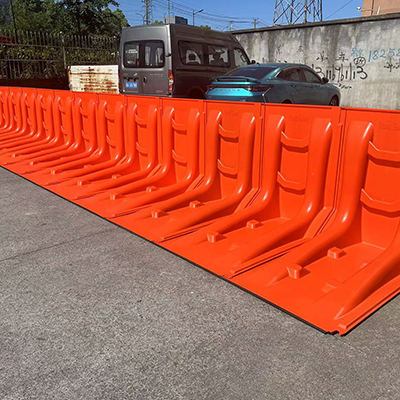

Free Standing Flood Board

New Stainless Steel Locking Clamp Design

A stainless steel locking clamp is new provided on the board, to lock each connecting board. The 1st generation was buckled together directly by the slotted channel in the board, due to the low strength of the plastic material offering un-sufficient locking strength, in extreme cases these buckles may slip out leads to a risk of failure.

The new stainless steel locking design makes the connection more stable, and doubled the overall rigidity of the full system.

Contacting Interface Reinforced

Reinforcing bracket with the seals is designed at the contacting interface to prevent damage and extend the life.

Storage Space Reduced

The boards can be stored in two or three pieces connected and placed on its side, to reduce the storage area. And the assembled form can reduce the transporting and deploy time for emergency.
